Yamaha FJR1300AE

This supremely capable motorcycle offers supersport-level performance with outstanding rider and passenger comfort.

Now further refinements are added including a smooth and quiet helical cut six speed transmission, lightweight assist and slipper clutch and lean angle sensitive LED lighting system with revised bodywork to suit.

With its silky smooth 1298cc inline four engine, long-range 25-litre fuel tank, aerodynamic fairing with electronically adjustable screen and adjustable riding position, the new-generation FJR1300AE gets you there in comfort and style.

Features

High performance

High performance

Featuring a Yamaha Chip Controlled Throttle (YCC-T) for smooth power delivery, the advanced inline 4-cylinder powerplant delivers outstanding sports performance. Its high torque output makes for strong acceleration in all 6 gears - and the impressive top end enables you to cover massive distances without trying too hard.

Electronically adjustable suspension

Electronically adjustable suspension

By simply selecting an option via the easily located handlebar-mounted switch, the rider can select ‘One-Up’, ‘One-Up with Luggage’, ‘Two-Up’ or ‘Two-Up with Luggage’ suspension settings. In addition to these four main settings, the system also offers the rider a choice of ‘Soft’, ‘Standard’ or ‘Hard’ damping for each setting, giving a total of 12 pre-defined suspension set-up options.

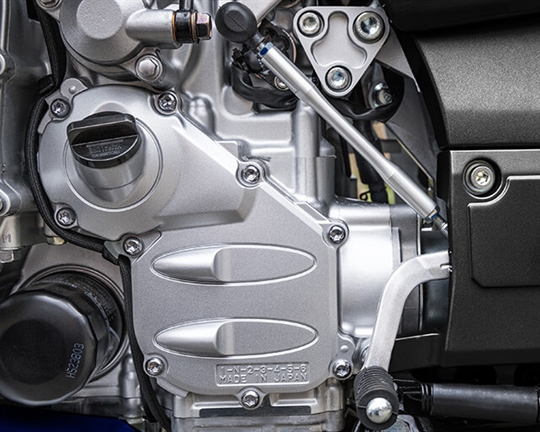

Assist and Slipper Clutch

Assist and Slipper Clutch

The FJR1300AE is equipped with a 6-speed transmission that enables the rider to make optimal use of the massive reserves of torque for rapid acceleration - while the high 6th gear gives lower rpm at high cruising speeds. And for smoother downshifting and enjoyable cornering, a standard Assist and Slipper (AS) clutch is fitted.

Cruise Control

Cruise Control

The FJR1300AE benefits from a new easy-to-operate cruise control system, which has been designed to make long-distance touring more relaxing and enjoyable. The system functions in 3rd, 4th and 5th gears between 50 km/h and 180 km/h, and is operated by two switches located on the left handlebar assembly.

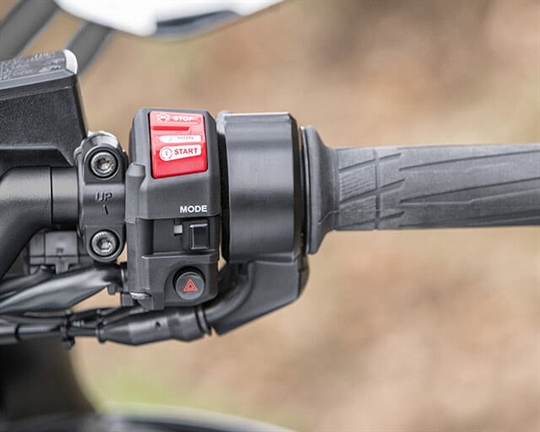

Yamaha D-Mode

Yamaha D-Mode

Yamaha D-MODE offers the rider a choice of two running modes, identified as 'T' mode and 'S' mode, which are operated by a push switch on the right handlebar. The system changes the character of the engine performance by adjusting the throttle valve in the Yamaha Chip Controlled Throttle (YCC-T).

Traction Control System

Traction Control System

This electronic system uses sensors to detect any rear wheel spin, and as soon as the rear tyre loses traction the Traction Control System instantaneously adjusts the bike's ignition timing, as well as the fuel injection volume and throttle opening to momentarily cut drive, and ensure that traction is maintained.

LED Headlights

LED Headlights

Twin-eye headlights are equipped with four compact and powerful LED lighting units - while the LED position lights and LED taillight assembly underline the FJR's high-tech specification. And with its front adaptive cornering lights that illuminate as the bike banks over, the FJR1300AE is one of the most capable bikes in its class.

Features 2

Technical Specifications

Yamaha FJR1300AE Specs

Engine

Engine Type: Liquid-cooled, 4-stroke, DOHC, 4-valve, forward-inclined parallel 4-cylinder

Displacement (cc): 1298.0

Bore x Stroke (mm): 79.0 x 66.2

Compression Ratio: 10.8 : 1

Lubrication System: Wet sump

Fuel Management: Fuel Injection

Ignition: TCI

Starter System: Electric

Fuel Tank Capacity (L): 25.0

Final Transmission: Shaft

Transmission: Constant mesh 6-speed

Chassis

Frame Type: Aluminium Diamond

Suspension Front: Telescopic forks, 135mm travel

Suspension Rear: Swingarm (link suspension), 125mm travel

Brakes Front: Hydraulic dual discs, 320 mm - ABS

Brakes Rear: Hydraulic single disc, 282 mm - ABS

Tyres Front: 120/70ZR17M/C (58W) Tubeless

Tyres Rear: 180/55ZR17M/C(73W) Tubeless

Dimensions

Length (mm): 2230

Width (mm): 750

Height (mm): 1325 / 1455

Seat Height (mm): 805 / 825

Wheelbase (mm): 1545

Ground Clearance (mm): 125

Wet Weight (kg): 292

Colours

Colours and trims displayed here are a guide only and may vary from actual colours due to the display process.

  1. Tech Graphite
