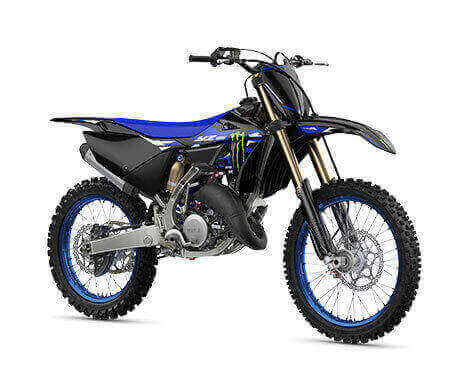

Yamaha YZ125SP

The new 2022 YZ125 represents an important evolution in Yamaha’s two-stroke lineage. As the first full model change to the iconic model in more than 15 years, Yamaha engineers put considerable thought into developing a motorcycle that would be both dominant on the racetrack and user-friendly for developing riders looking to bridge the gap between recreation riding and competitive motocross.

The liquid-cooled 125cc two-stroke engine has been thoroughly reworked to produce more power. Every functional part of the 2022 YZ125 engine is new, including the cylinder body, cylinder head, piston, piston pin, connecting rod, crankcase and expansion chamber.

To match increased engine performance, an updated lightweight braking system features larger front pistons, a more rigid caliper, a redesigned 270mm front rotor with a 30% increase in pad contact area and higher friction pad material, all combining to provide exceptional braking power and feel.

The special Monster Energy Yamaha Racing Edition is fitted with premium embedded graphics to ensure outstanding durability and scratch resistance.

Features

Increased power and better usability

Increased power and better usability

The all-new 125cc 2-stroke engine is the most powerful unit ever used on the YZ125, and it develops a higher performance in the mid to high rpm range and offers improved usability. This has been achieved by developing an all new cylinder head, piston and cylinder, con rod, crank, YPVS as well as redesigning other major components.

Athletic new ultra-slim bodywork

Athletic new ultra-slim bodywork

Bodywork is the slimmest ever, with the area between the rider’s knees 36mm narrower than on the previous model, and the athletic and modern body design underlines the YZ125 Monster Energy Yamaha Racing Edition’s lightness and compactness. The reduced dimensions improve overall rider mobility and reinforce this lightweight racer’s feeling of agility.

High-efficiency air intake

High-efficiency air intake

Following extensive testing Yamaha’s engineers have developed a new intake system. The whole area around the airbox has been redesigned including the seat base, rear frame and sidepanels in order to reduce air resistance, making a significant contribution towards increased intake efficiency.

Keihin Powerjet carburettor

Keihin Powerjet carburettor

The YZ125 Monster Energy Yamaha Racing Edition is equipped with a Keihin PWK 38.1mm carburettor featuring a solenoid controlled Powerjet that instantly delivers its fuel/air mix for even more explosive performance, giving a real advantage out of the gate and when accelerating hard out of corners. And the new TPS (Throttle Position Sensor) and 3D map controlled CDI ensure optimised ignition timing, while the new VForce reed valve assembly provides optimum intake efficiency at all engine speeds.

Monster Energy Yamaha Racing Edition bodywork

Monster Energy Yamaha Racing Edition bodywork

The YZ125 Monster Energy Yamaha Racing Edition has got to be the ultimate YZ125 ever built by Yamaha. Its exclusive factory team graphics combined with dynamic bodywork in Monster Black with blue accents and blue wheels give you the opportunity to own and race your very own replica bike!

Smooth shifting 6-speed transmission

Smooth shifting 6-speed transmission

The transmission has been redesigned and features a new set of internals to handle the YZ125’s dramatically increased maximum power output, and a redesigned shift mechanism gives a smoother shift feeling. The secondary reduction ratio is slightly increased with the use of a 13/49 front/rear sprocket set, and for better driveability the transmission runs with slightly reduced 5th and 6th gear ratios.

Best-in-class KYB suspension

Best-in-class KYB suspension

Yamaha’s SSS (Speed Sensitive System) KYB front forks are widely regarded as being amongst the best designs available on a production motocross bike, and the new model features revised low speed damping settings on both the front and rear suspension systems for better handling characteristics.

New rear frame

New rear frame

Complimenting the performant aluminium semi-double cradle frame, the new rear frame on the YZ125 Monster Energy Yamaha Racing Edition is designed to enhance air flow into the carburettor, and a new style cross member facilitates the use of a new single bolt fixing for the seat – for quicker and easier maintenance. The new rear frame also accommodates a new mounting point for the 50mm shorter silencer.

Powerful braking system

Powerful braking system

The brakes on the YZ125 Monster Energy Yamaha Racing Edition have been redeveloped to handle the increased performance. The front disc diameter remains the same at 270mm, but a new more rigid twin-pot caliper is equipped with larger 25.4mm pistons and new pads with an increased contact area for more powerful braking. For the rear disc, the diameter is reduced by 5mm to 240mm while the pad area remains the same.

Race-developed ergonomics

Race-developed ergonomics

Engine performance is just one element of being competitive – the ability to handle the power effectively and take total control of the chassis is also vital. A new much flatter seat with a lower front and higher rear, together with the new slimmer tank and narrower radiator shrouds, make it much easier to shift your weight around the bike when braking, accelerating and cornering.

Features 3
Features 3

Technical Specifications

Yamaha YZ125SP Specs

Engine

Engine Type: Liquid cooled, 2-stroke, reed-valve

Displacement (cc): 125.0

Bore x Stroke (mm): 54.0 x 54.5

Compression Ratio: 8.2 - 10.1 : 1

Lubrication System: Premix

Fuel Management: PWK38S

Ignition: CDI

Starter System: Kick

Fuel Tank Capacity (L): 7.0

Final Transmission: Chain

Transmission: Constant mesh 6-speed

Chassis

Frame Type: Aluminium controlled filled semi double cradle

Suspension Front: Telescopic forks, 300mm travel

Suspension Rear: Swingarm (link suspension), 315mm travel

Brakes Front: Hydraulic single disc, 270mm

Brakes Rear: Hydraulic single disc, 240mm

Tyres Front: 80/100-21 Bridgestone Battlecross X20F

Tyres Rear: 100/90-19 Bridgestone® Battlecross X20

Dimensions

Length (mm): 2135

Width (mm): 825

Height (mm): 1295

Seat Height (mm): 975

Wheelbase (mm): 1440

Ground Clearance (mm): 365

Wet Weight (kg): 95

Colours

Colours and trims displayed here are a guide only and may vary from actual colours due to the display process.

  1. Monster Energy Yamaha Racing Edition
