Yamaha PW50

Fully-automatic 2-stroke engine

The PW50's lightweight 50cc 2-stroke air-cooled engine is designed specifically to suit the needs of new riders. Smooth and responsive, the fully-automatic gearbox makes for rider-friendly 'twist-and-go' performance - and the simple throttle limiter allows parents to adjust top speed to suit the rider's skill level.

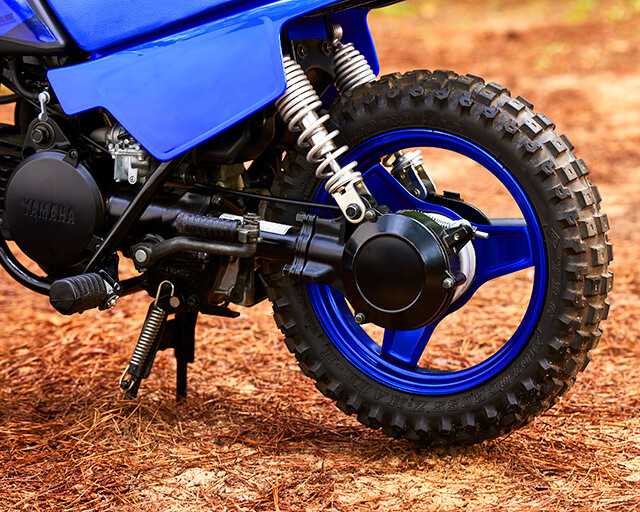

Low-maintenance shaft drive

Just about every feature on this remarkable little motorcycle has been designed to make the PW50 fun to ride and easy own. The fully-enclosed shaft drive system is clean and quiet, which, together with its low-maintenance design, makes this system the obvious choice for new riders and for parents wanting an easy life.

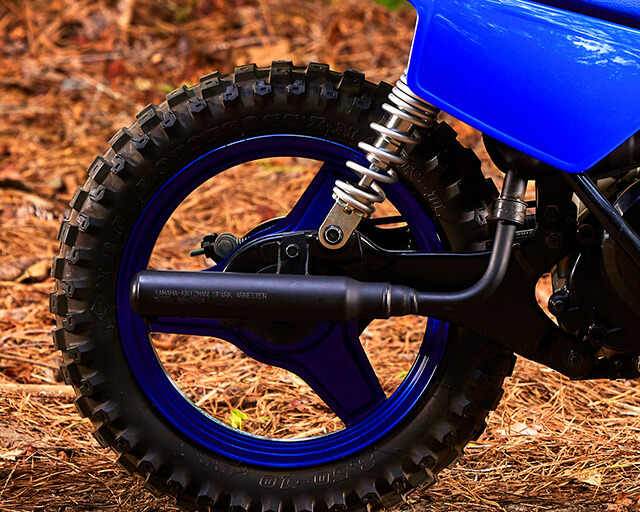

Lightweight high-level exhaust

Check out the exhaust and you can see another example of how our engineers have gone to great lengths to enhance safety and convenience. Featuring a heat shield for added protection, this lightweight pipe is routed close to the engine for extra ground clearance and improved protection.

Low seat height

With its low seat height of only 485 mm and a comfortable riding position, new riders will feel instantly at home on the PW50. The handlebar layout is similar to a bicycle's, with the back brake operated by the left hand and front brake by the right, making it easy for beginners. Just twist the throttle and the fun begins.

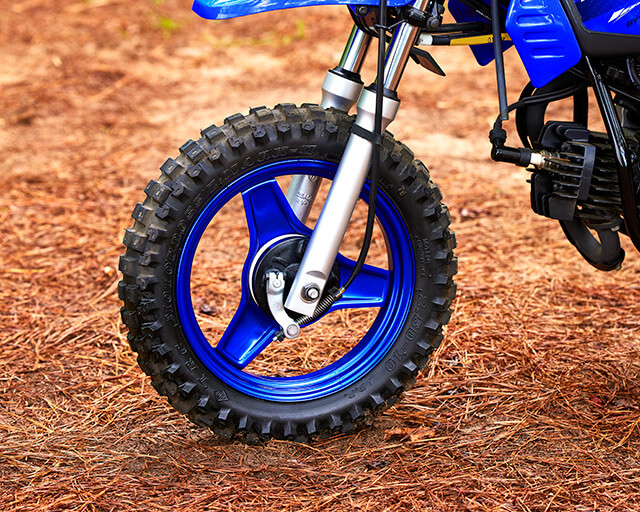

Strong 3-spoke steel wheels

Although it weighs only 39 kg, this is a tough little motorcycle that's designed to deliver many years of fun. Its 3-spoke 10 inch steel wheels are strong and easy to clean - and for plenty of grip, the PW50 runs on chunky 2.5 inch wide tyres.

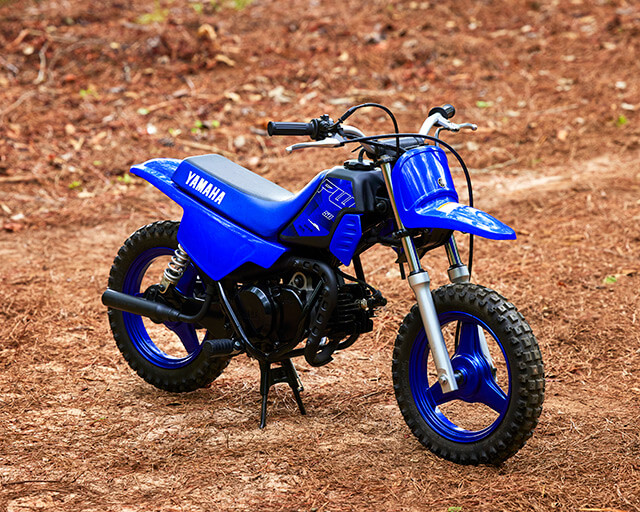

Lightweight and strong

Just like Yamaha's larger-capacity off road bikes, the PW50 is equipped with polypropylene bodywork which combines high strength with low weight. The front and rear fenders and side panels are finished in racing blue, and bright tank graphics and white racing number backgrounds give this leading mini-bike a sporty image.

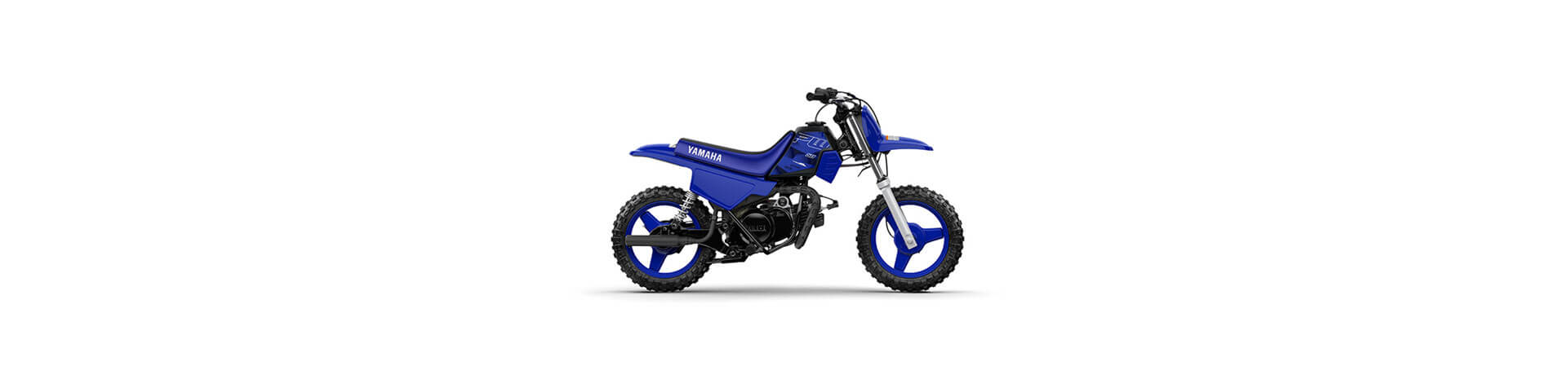

Engine

Engine Type: Air-cooled, 2-stroke, reed-valve

Displacement (cc): 49.0

Bore x Stroke (mm): 40.0 x 39.2

Compression Ratio: 6.0 : 1

Lubrication System: Autolube

Fuel Management: VM12

Ignition: CDI

Starter System: Kick

Fuel Tank Capacity (L): 2.0

Final Transmission: Shaft

Transmission: Automatic

Chassis

Frame Type: Steel tube backbone

Suspension Front: Telescopic forks, 60mm travel

Suspension Rear: Unit swing, 50mm travel

Brakes Front: Drum

Brakes Rear: Drum

Tyres Front: 2.50-10 4PR Tube type

Tyres Rear: 2.50-10 4PR Tube type

Dimensions

Length (mm): 1245

Width (mm): 575

Height (mm): 715

Seat Height (mm): 485

Wheelbase (mm): 855

Ground Clearance (mm): 105

Wet Weight (kg): 39
