Yamaha YFM90R

Sporty 90cc Engine

The Raptor® 90 is built to bring maximum fun to the youth ATV class for riders 10 and up, with a low-maintenance 90cc engine tuned to develop excellent low-to-mid range performance. It also has features surprising in this segment, like a fully automatic CVT transmission with reverse, gated shifter (F/N/R) and electric start with a back-up kickstart - all standard.

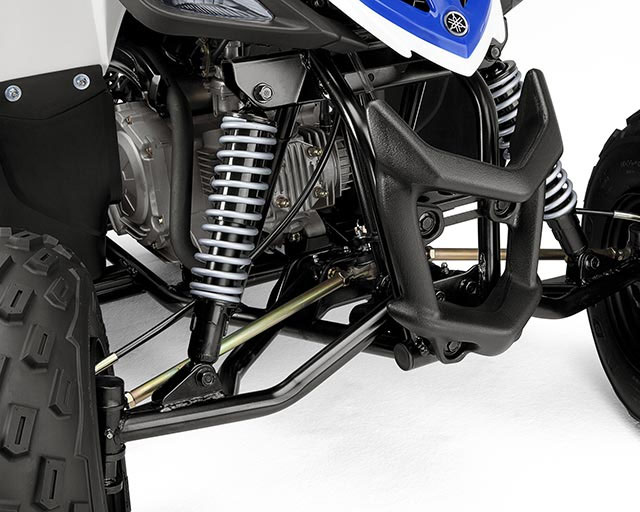

Scaled Down Not Scaled Back

Compact A-arm front suspension is tuned for light, sporty steering and comfortable ride quality, with preload-adjustable shocks offering 127mm of wheel travel and adding to the Raptor 90’s full-size ATV look. The rear swingarm also features a 5-way preload adjustable shock, offering 147mm of wheel travel.

Modern Reliable Electronics

The CDI system means reliable ignition performance, with a strong, efficient spark – and a sealed, maintenance-free battery gives worry-free service. Handlebar-mounted reverse and neutral indicators keep the rider informed, too.

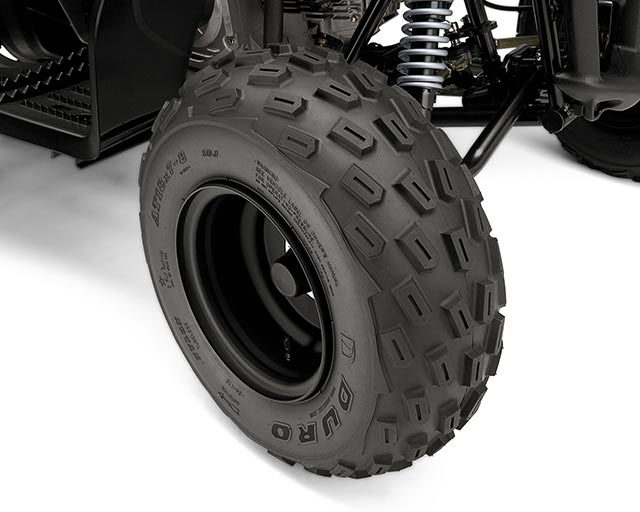

Yamaha Raptor DNA

For sporty looks and handling, Raptor 90 uses low-profile Duro tyres on lightweight wheels and styling unmistakably inspired by the mighty Raptor 700R.

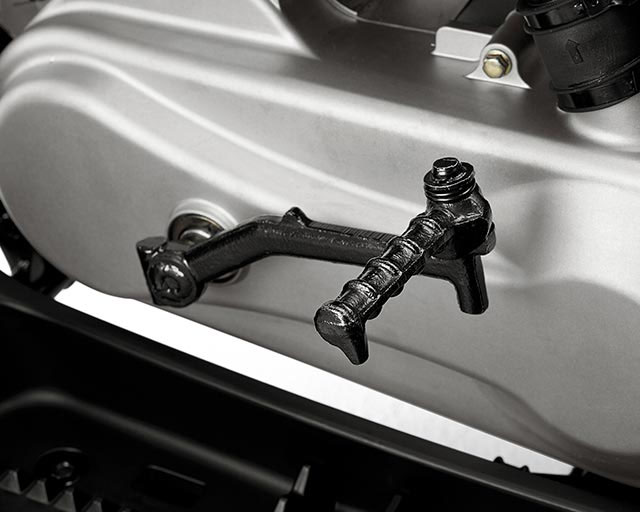

Electric Starter

Push-button electric starting comes standard, of course, and an emergency kick starter is also provided in a storage spot under the seat for additional peace of mind.

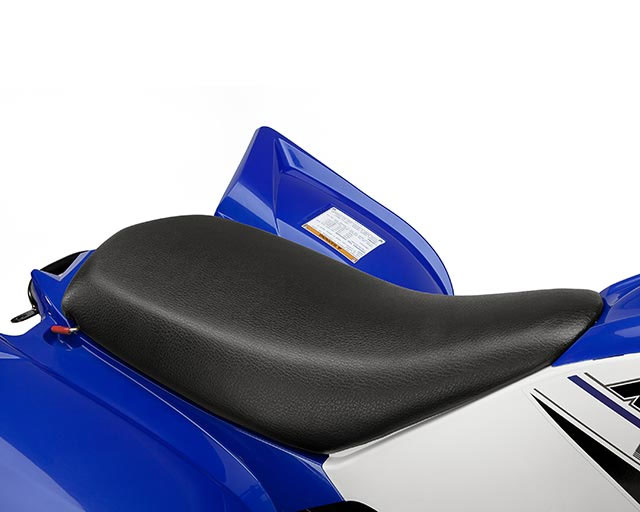

Comfortable Chassis

An advanced frame design incorporates a large 6.6 litre fuel tank, plush seat and roomy integrated floorboards inside a long, secure wheelbase.

Engine

Engine Type: Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder

Displacement (cc): 89.9

Bore x Stroke (mm): 47.0 x 51.8

Compression Ratio: 9.2 : 1

Lubrication System: Wet sump

Fuel Management: H66D x 1

Ignition: CDI

Starter System: Electric and Kick

Fuel Tank Capacity (L): 6.6

Final Transmission: Chain

Transmission: V-belt automatic, F, N, R

Chassis

Frame Type: Steel tube

Suspension Front: Single A-arm, 126mm travel

Suspension Rear: Swingarm, 145mm travel

Brakes Front: Dual drums

Brakes Rear: Drum

Tyres Front: AT18 x 7-8

Tyres Rear: AT18 x 9-8

Dimensions

Length (mm): 1485

Width (mm): 1020

Height (mm): 955

Seat Height (mm): 750

Wheelbase (mm): 1030

Ground Clearance (mm): 100

Wet Weight (kg): 126.5
